Videojet 1580

SmartCell™ maintenance made simple

Simplify routine maintenance with color-coded, easy-to-replace Videojet SmartCell™ components. The user-changeable parts require annual replacement, or when the
printer reaches 5,000 hours, whichever comes first.

On-screen alerts provide advance notification of when a part needs replacing,
allowing maintenance to be performed in line with your production schedules.

เครื่องพิมพ์วันที่รุ่นใหม่ล่าสุด เทคโนโลยีการพิมพ์ที่ดีที่สุดแห่งยุค  Videojet 1580

  • Uptime Advantage
    Prevent a downtime event, with an additional 8 hours minimum of runtime using a make-up reserve tank that protects your production under normal operating conditions
    Replace preventive maintenance components easily and reliably, with no additional production downtime
    Recover in minutes from unplanned interruptions with optional VideojetConnect™ Remote Service – minimizing the need for on-site service calls (depending on local availability
  • Simple Usability
    Eliminate potential user errors through a Videojet SIMPLICiTY™ interface that greatly reduces operator printer interactions
    Easy to operate tablet-inspired 10” touchscreen display that is intuitive to you and translated to native language
    Customize interfaces with built-in wizards, and access guided video tutorials for routine printer tasks
  • Code Assurance
    Lower the opportunity for coding errors with intelligent message creation functionality
    Automate code content without the need for operator interaction with user definable message rules
    Streamline message creation and job set-up to start coding products quicker
  • Built-in Productivity
    Analyze your individual use patterns and receive printer improvement opportunities via on-screen alerts
    Access technical experts at the touch of a button through optional VideojetConnect™ Remote Service
    Operate more effectively with detailed runtime analytics and reporting, partnering with Videojet Service to improve over time

(1) Parts-only limited warranty prorated for the remaining life at time of warranty replacement

Specification
Value
Printheads1
InksDye Based
Maximum Lines of Print per Printhead5
Maximum Line Speed (1)293 m/min (960 ft/min)
Environmental ProtectionIP55 (Dust Kit IP65 #)
Umbilical Length3 m (9.8 ft) optional 6 m (19.6 ft)
Message Storage CapabilityMore than 250 complex messages
Smart Cartridge™Included
Plug and Play Printhead ModulesIncluded
USBIncluded
CommunicationsEthernet LAN and RS232 Serial (requires RS232 connector kit)
Linear and 2D Bar CodesIncluded
Positive Air / CleanFlow™Optional
Display (User Interface)SIMPLICiTY™ based 10 inch color touchscreen

# Optional (Electronics Cabinet)

(1) Based upon single line, 10 characters per inch

Brochure VJ1580

เอกสารโบชัวร์ เครื่อง VideoJet 1580

Brochure Inks VJ1580

เอกสารโบชัวร์หมึกพิมพ์ เครื่อง VideoJet 1580

Spec Sheet VJ1580

เอกสารสเป็คเครื่อง VideoJet 1580

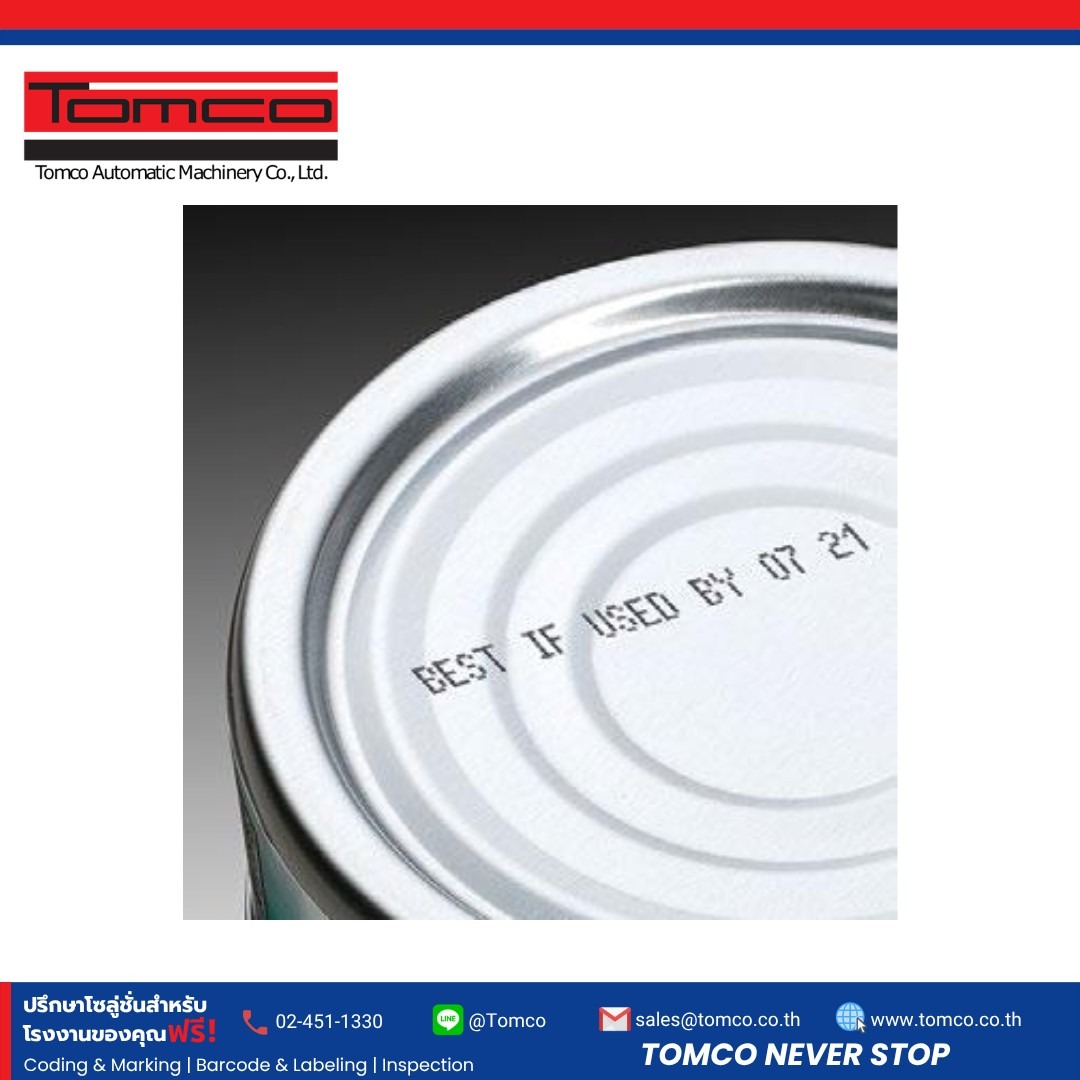

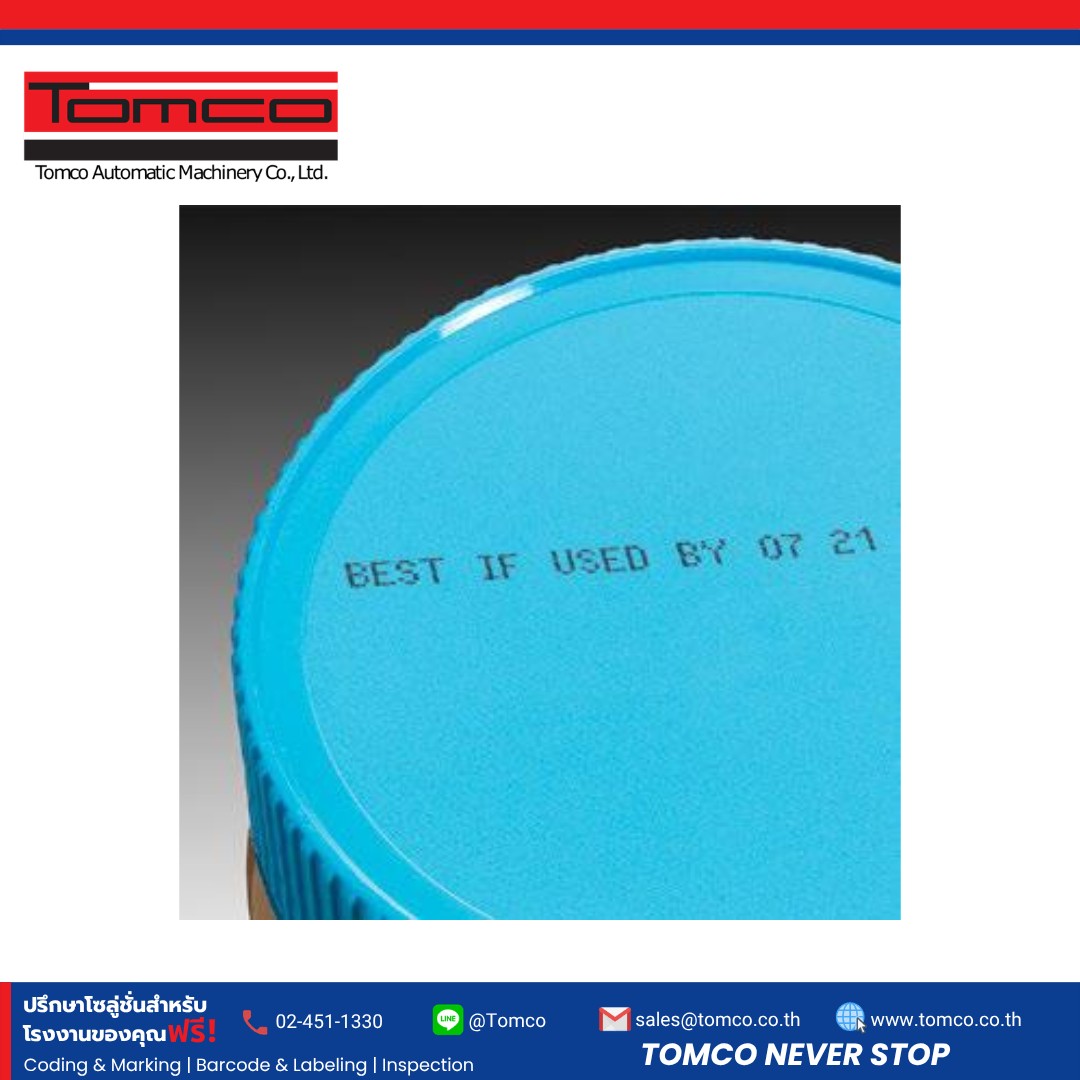

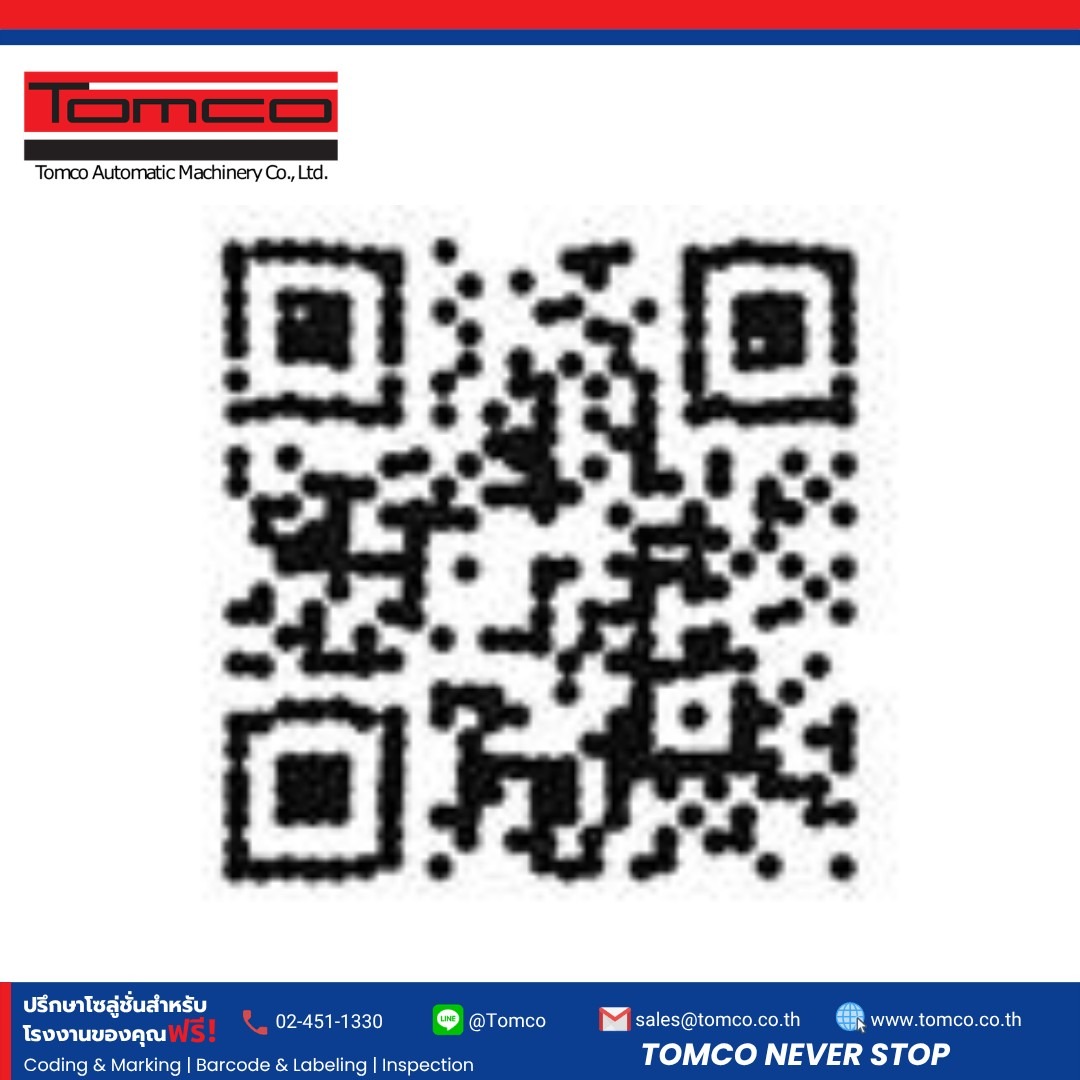

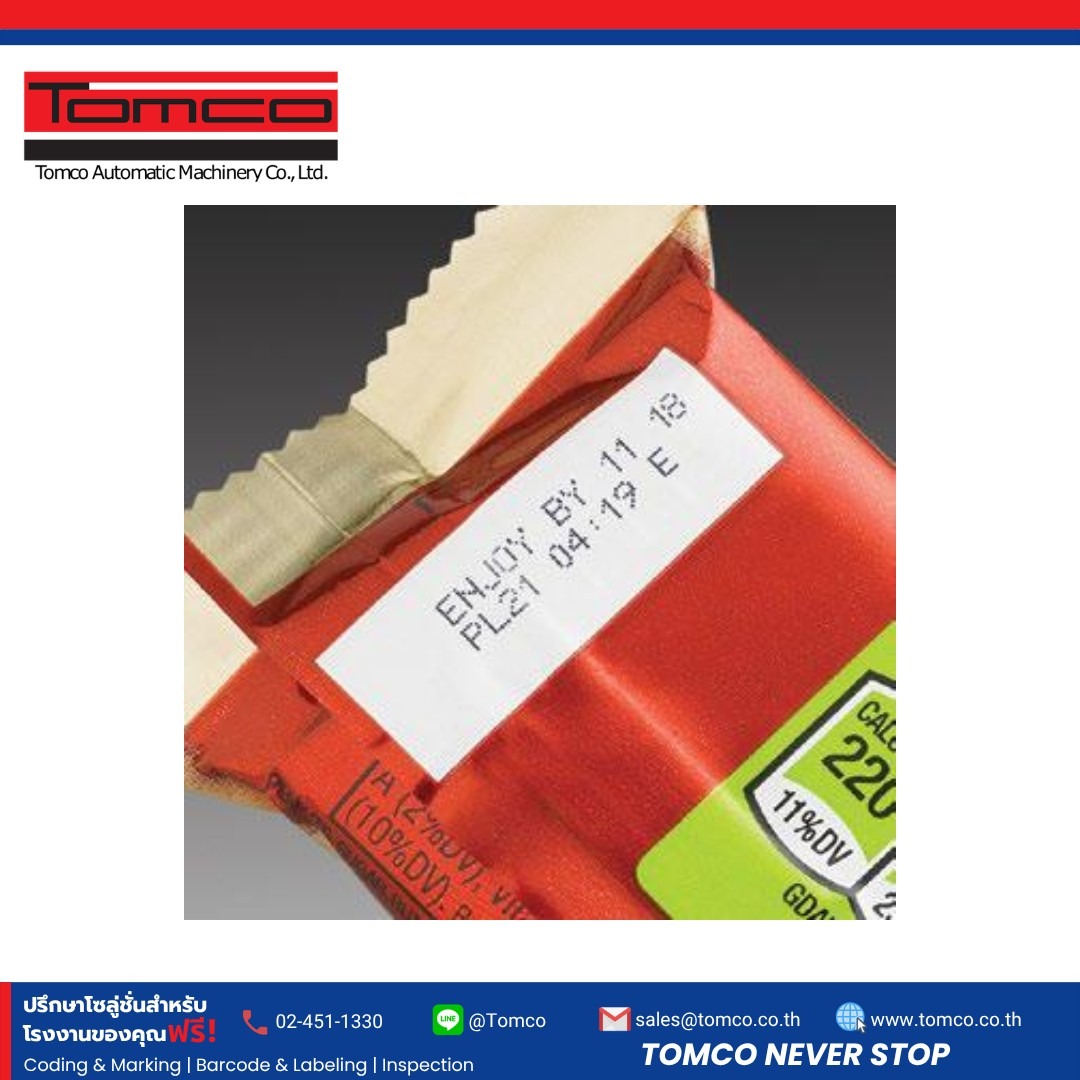

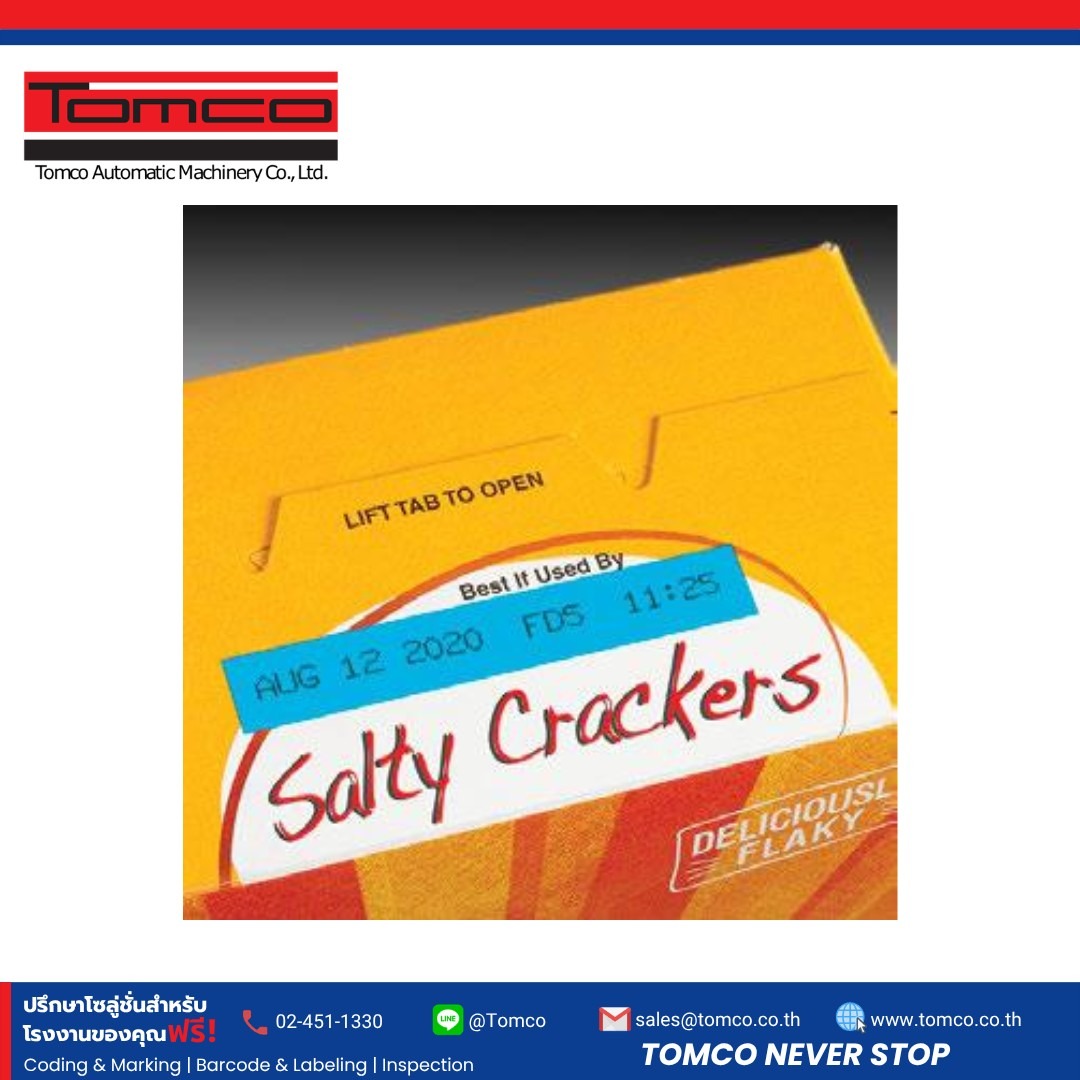

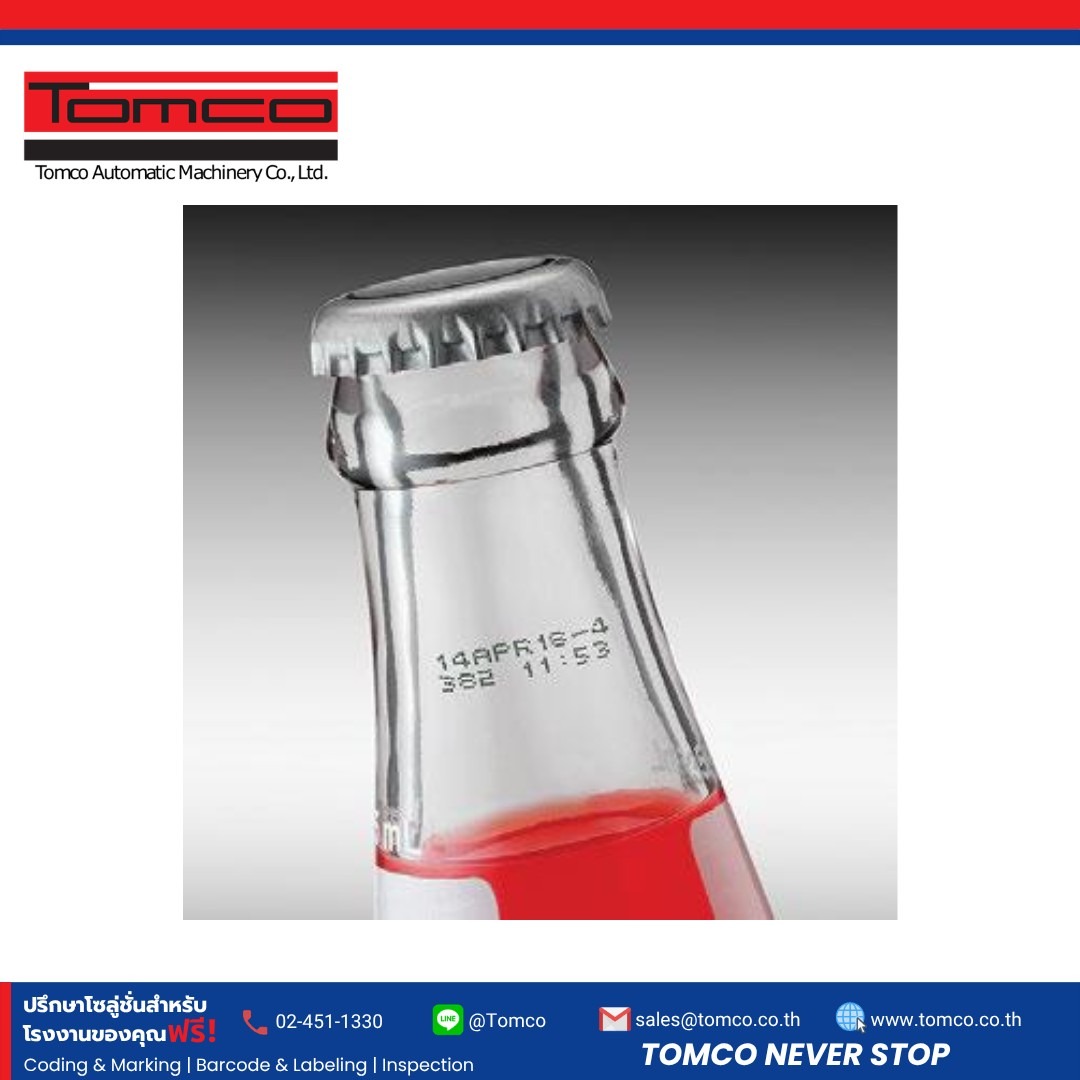

Print sample guide VJ1580

เอกสารตัวอย่างการพิมพ์ เครื่อง VideoJet 1580
